Heat Meter

What is Qcal ?

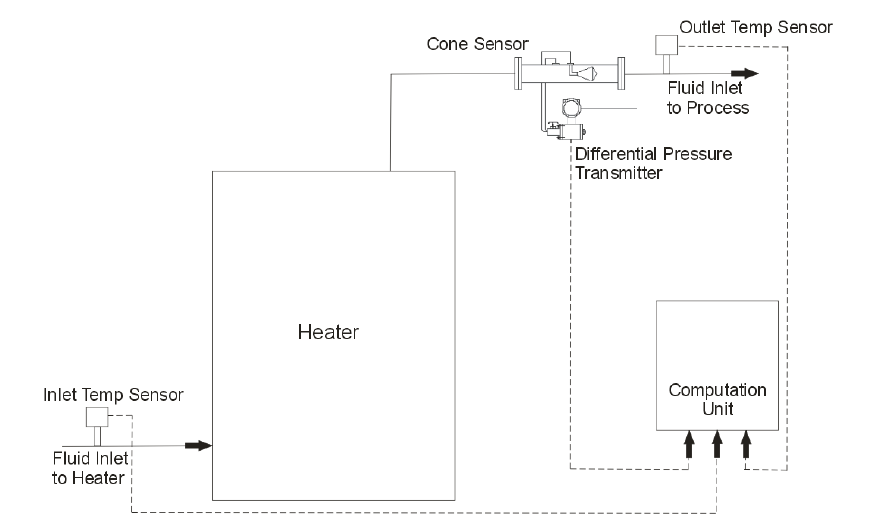

Qcal (Heat meter) is an online metering system installed at the outlet of Thermic Fluid Heater/ Hot Water Generators/process equipments to measure heat input to process equipment / heat generation by heater.

Why to measure heat output?

To monitor the performance of the heater
To monitor heat requirement of the plant
For costing of the product
For leakage / wastage detection

Technical Specifications

Size	40 to 200 NB
Type of Meter	Differential Pressure (DP Type)
Flow Element	Cone Sensor *
Accuracy of Meter	± 1% of actual flow
Display 2	Line LCD Display with Blue backlight.
Power Supply *	230 VAC ± 10%, 50 Hz, Single Phase

Features & Benefits

Indication of inlet temp, outlet temp, instant heat & total heat on LCD display.

Operating modes : Reset, Display, Configuration, Calibration, Check, Set time, Logs (Optional), Communication (Optional)

Password protection for all operating modes (except display mode)

Computer interface to supervisory computer through RS232 or RS485 communication link.

Retransmission of totalised heat parameters.
